ALPS Plate
01

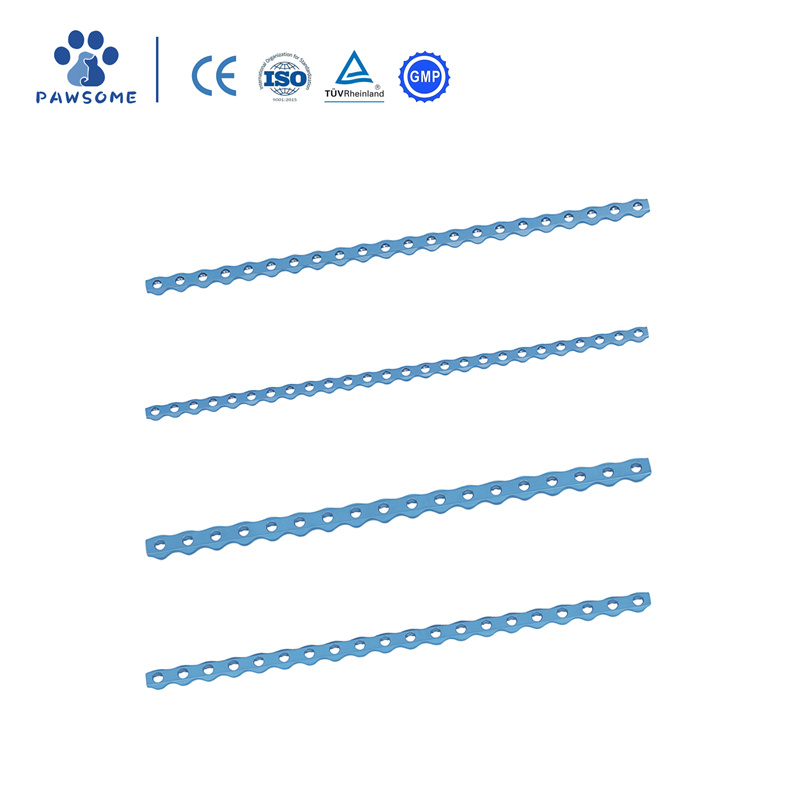

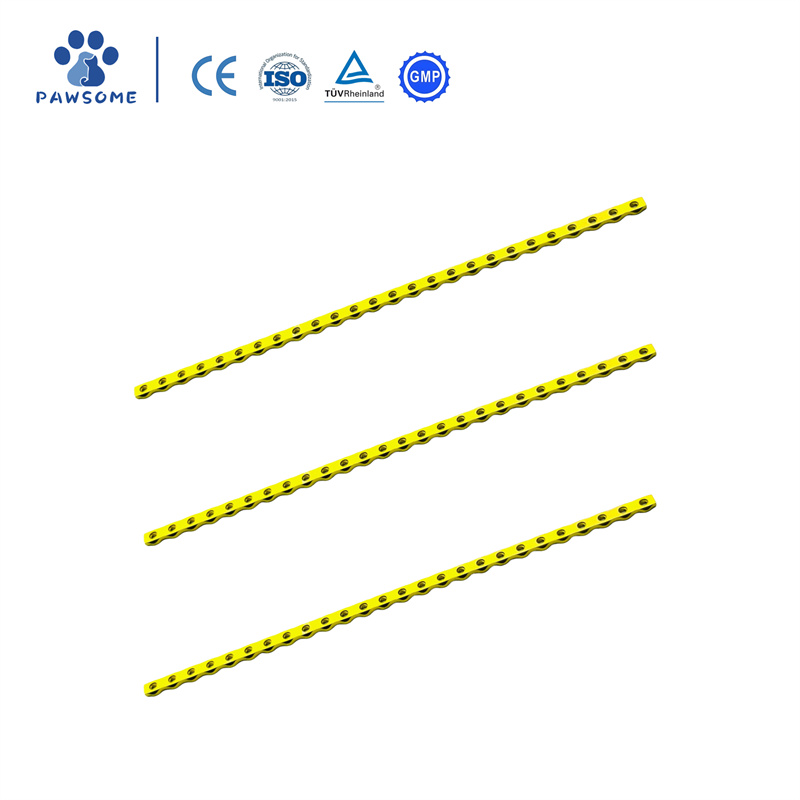

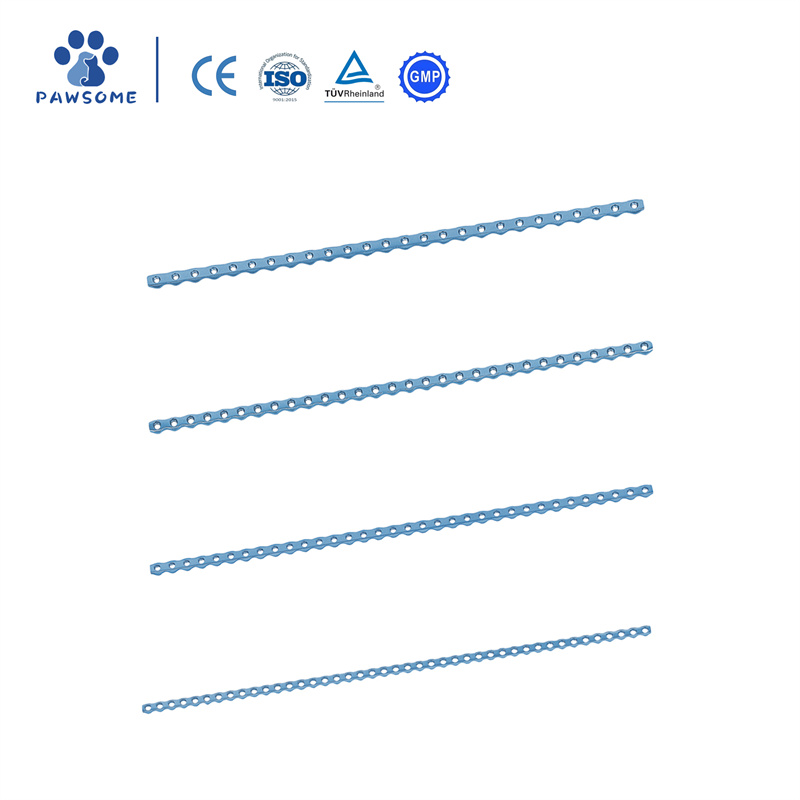

Veterinary Reconstruction Locking Plate
specification
| Products | CODE | Specification | Picture |
| 1.6mm Reconstruction Locking Plate | PAW010101 | 30 holes |

|
| PAW010102 | 26 holes |

|
|
| 2.4mm Reconstruction Locking Plate | PAW010103 | 43 holes |

|
| PAW010104 | 34 holes |

|
|
| 3.2mm Reconstruction Locking Plate | PAW010105 | 26 holes |

|
| PAW010106 | 22 holes |

|
|
| 4.0mm Reconstruction Locking Plate | PAW010107 | 20 holes |

|
| PAW010108 | 18 holes |

|
product description
1.Clinical Uses and Indications of Straight Locking Plates
Straight Locking Plates are a foundational implant for veterinary fracture repair and are suitable for fixation in a variety of skeletal areas:
1）Primary Indications
-Long Bone Shaft Fractures: Simple or Complex Fractures of the Femur, Tibia, Humerus, and Radius
-Nonunion Treatment: Revision Surgery for Delayed or Nonunion Fractures
-Osteotomy Fixation: Corrective Osteotomy or Limb Length Discrepancy Correction
-Pathological Fractures: Fractures Caused by Bone Tumors or Metabolic Bone Disease
-Multiple Fractures: Used in Conjunction with Other Plate Types, Such as T- or L-Plate
2.Special Clinical Applications
1）Fractures in Juvenile Animals:
The locking mechanism is independent of bone density and is particularly well-suited for the skeletons of puppies and kittens.
A limited contact design can be used to minimize growth plate effects.
2）Osteoporosis Cases:
Osteoporotic Fractures in Elderly Dogs or Those Caused by Endocrine Disorders
Locking screws offer improved stability compared to conventional screws. Better screw retention
3）Micro Pet Orthopedics:
-1.5-2.0mm system is suitable for small dogs and cats weighing less than 5kg
-Low-profile design reduces soft tissue irritation
3.Biomechanical Research Data:
-2.7mm straight locking plate demonstrates a stiffness of 320N/mm in four-point bend testing
-Axial compression test capacity exceeds 450N
4.Product Structure and Functional Features
1）Core Structural Design
-Locking Hole Design:
-Tapered thread locking mechanism (such as the KLS™ system)
-Combined hole design (compatible with locking and conventional screws)
-Optimized hole spacing (typically 4-8mm)
2）Plate Features:
-Tapered end design facilitates insertion into submuscular tunnels
-Laser-etched length markings facilitate intraoperative measurement
-Cutable design (brand specific) accommodates varying length requirements
5.Material Technology:
-Medical-grade titanium alloy (Ti6Al4V ELI)
-Surface treatment (sandblasting/anodizing)
-Fatigue-resistant design (optimized by finite element analysis)
The advantages of PAWSOME：
1.With decades of experience in the field of pet orthopedics, we are able to provide high-quality products and effective solutions for pets around the world.
2.Hundreds of products allow you to achieve one-stop shopping, saving your time, providing your pet with better treatment time, and high-quality services, making you more efficient.
3.All products comply with CE and ISO certification, providing 100% guarantee for the safety and health of pets.
4.Professional technical and sales teams provide you with professional services 24 hours a day and respond to your needs in a timely manner.
5.Sufficient inventory ensures timely delivery of your orders, and flexible delivery channels provide you with the most suitable and safest transportation methods, so that the goods can reach you safely.
6.We provide 1 year after-sales service, so you can buy without worries.
Our veterinary products series
-

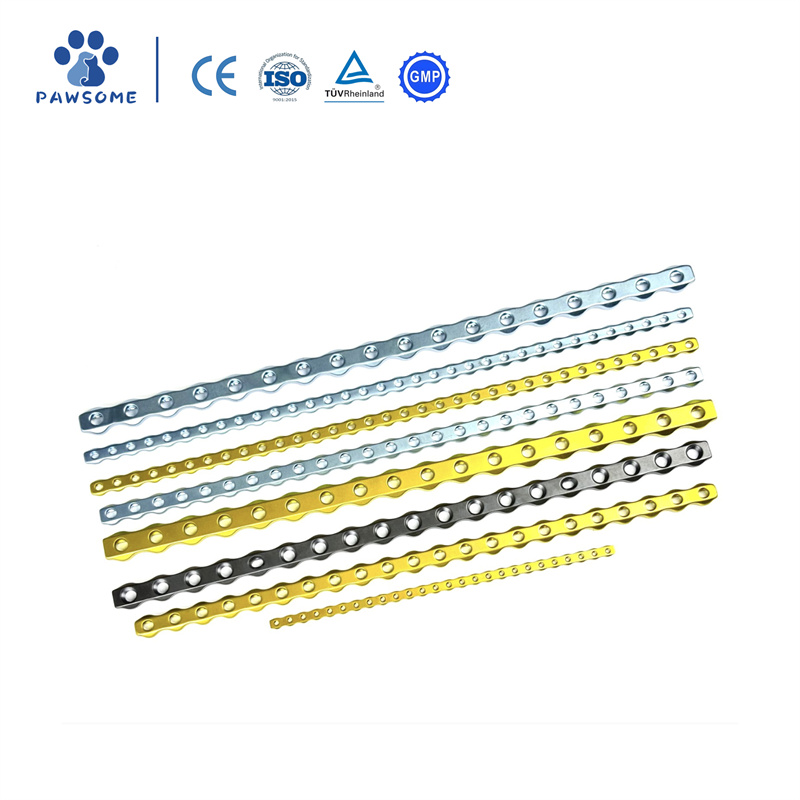

ALPS Plate System -

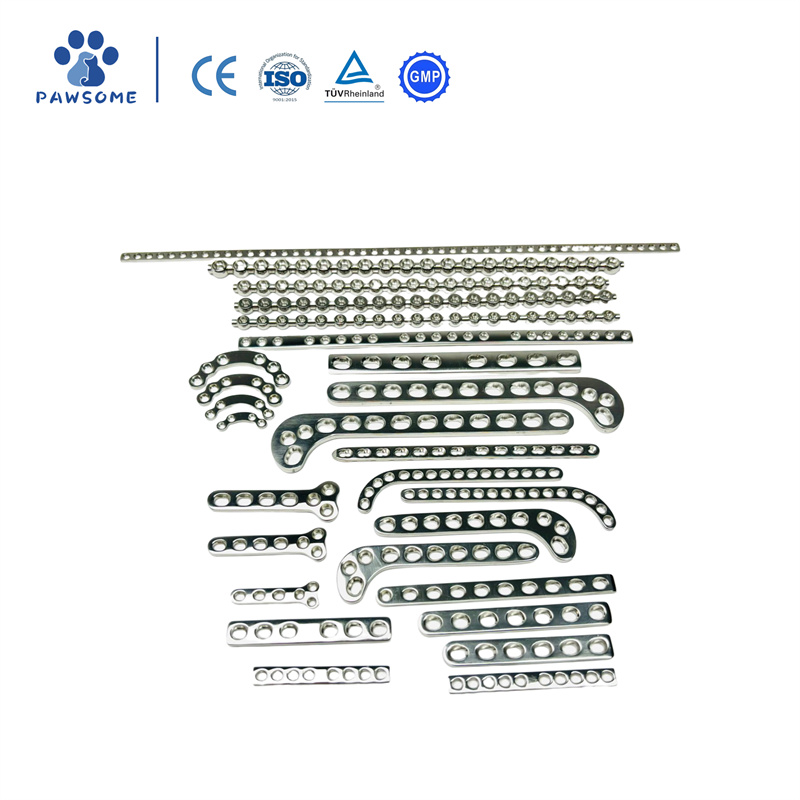

Non-locking Plate system -

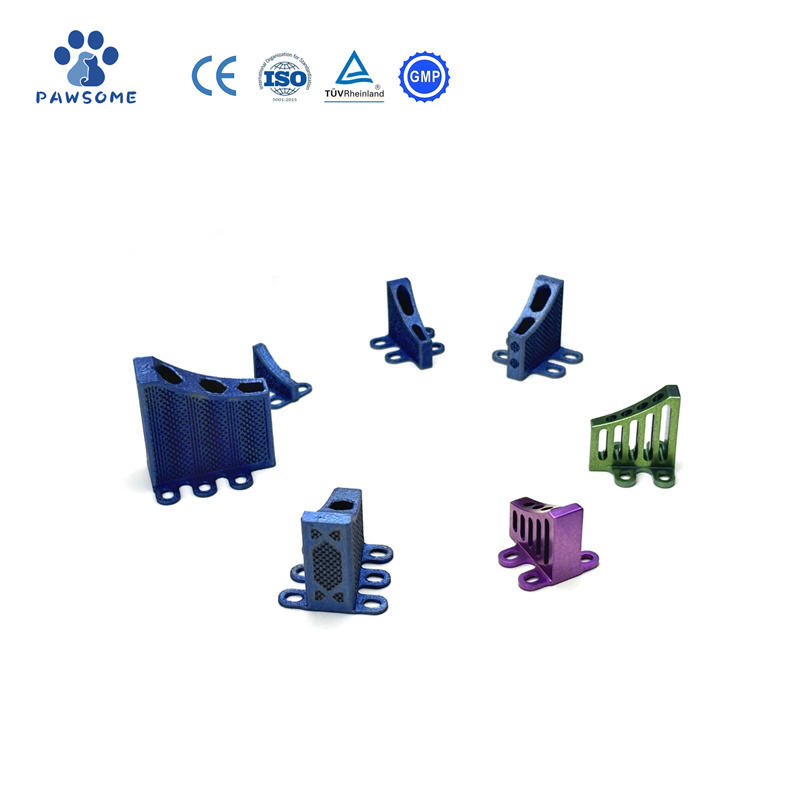

TTA System
-

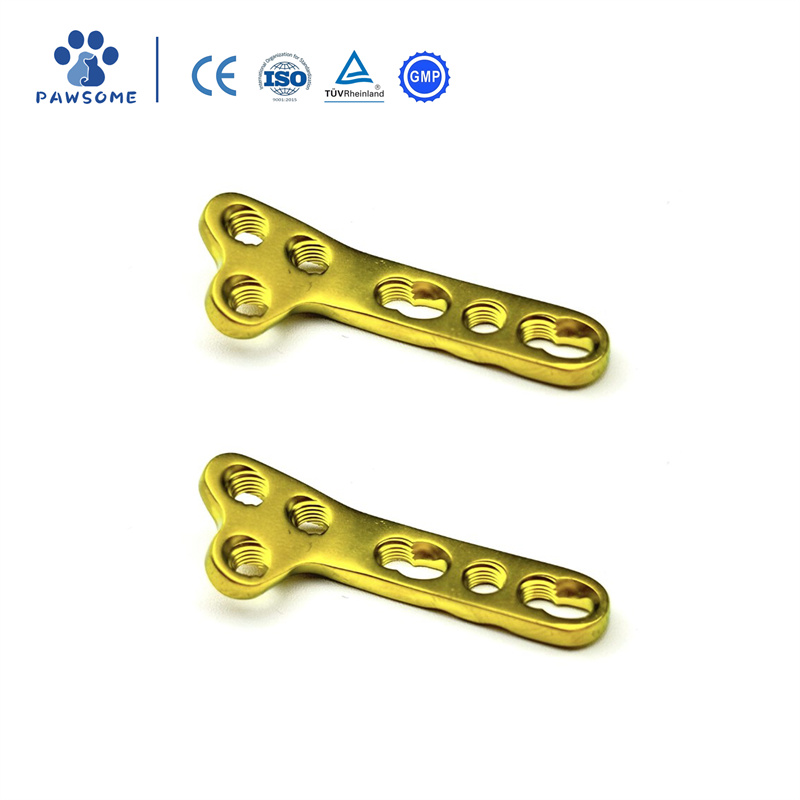

TPLO System -

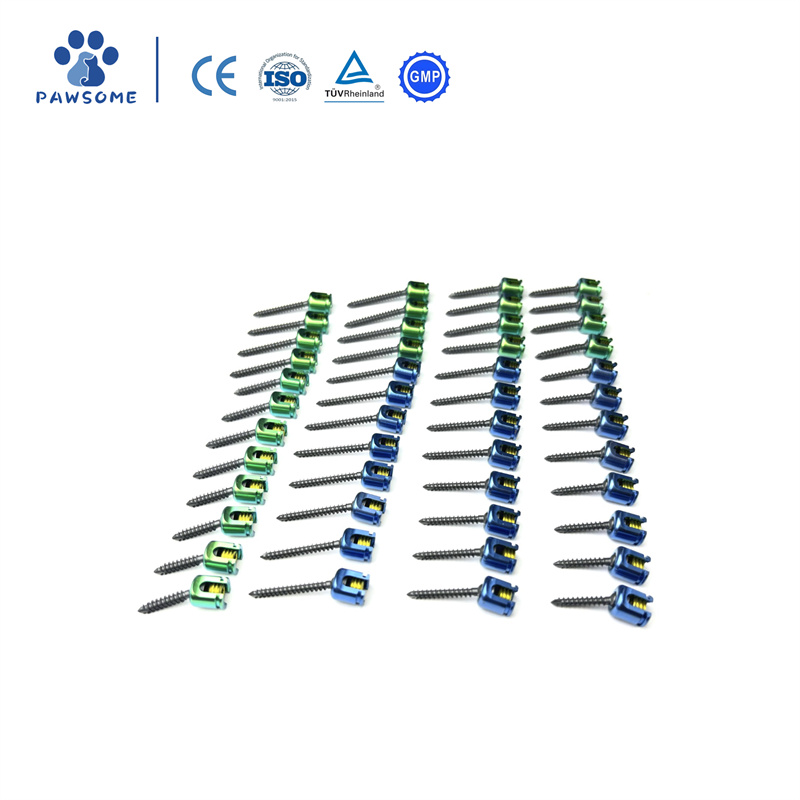

Spine -

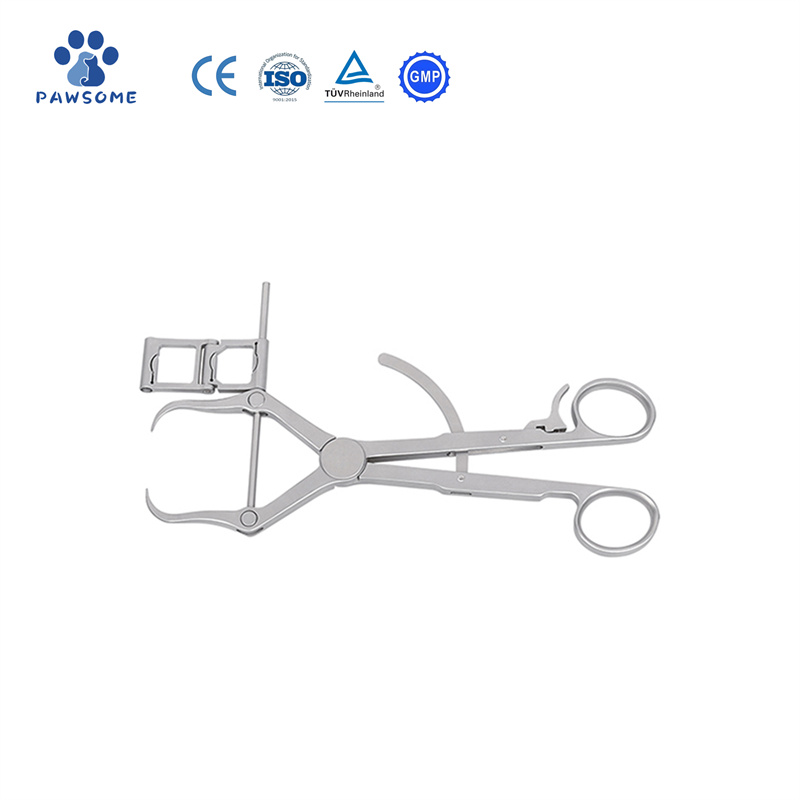

Veterinary instruments
-

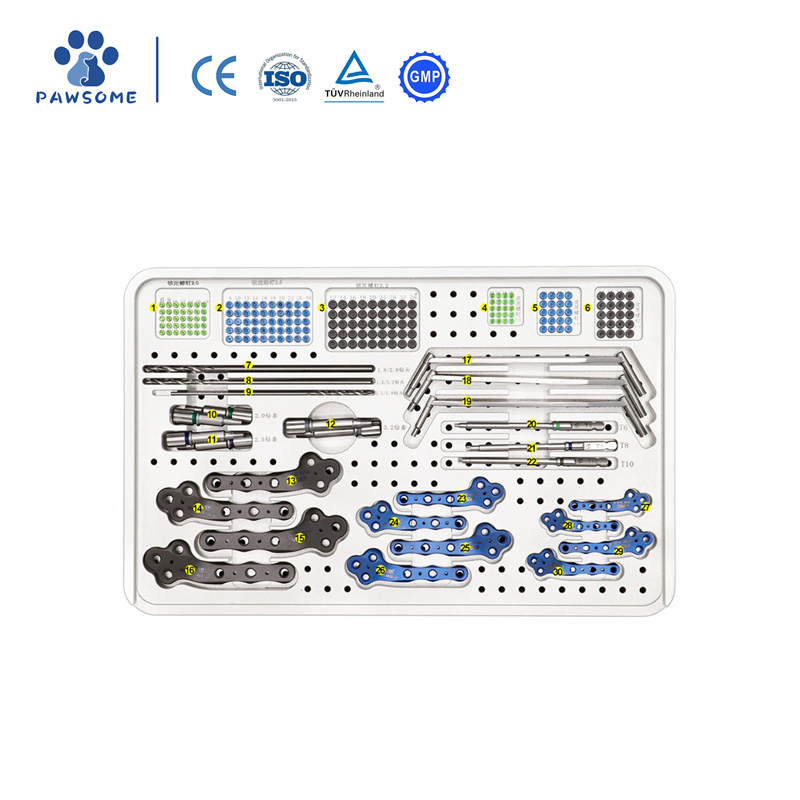

Veterinary Instrument Set -
External fixator -

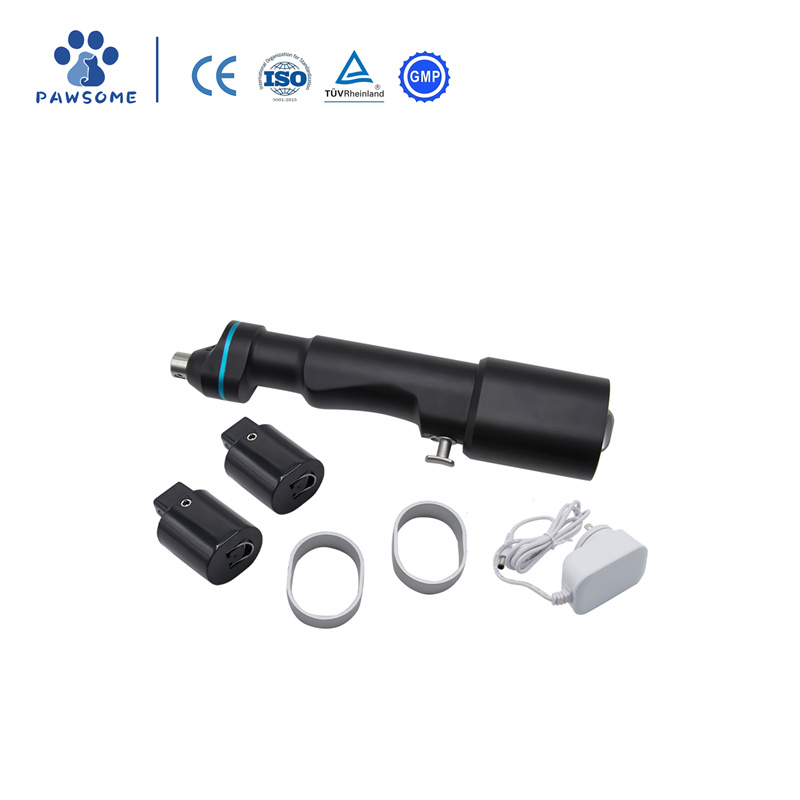

Medical Power Tool System
