Non-Locking Plate
01

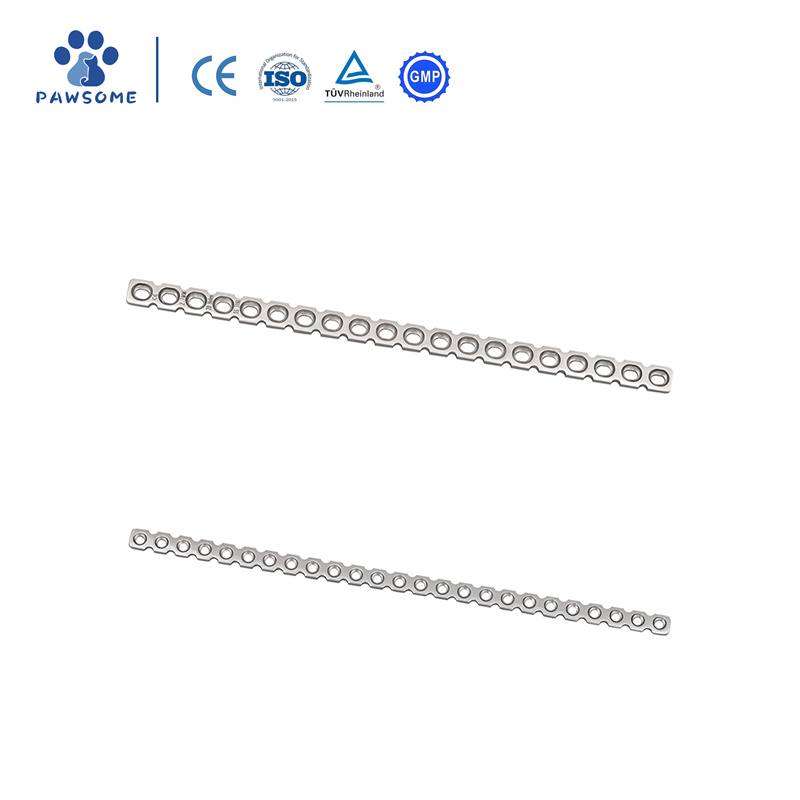

Veterinary Orthopedic trauma Straight Reconstruction Plate
specification
| Products | CODE | Specification | Picture |
| 1.5 Straight Reconstruction Plate | PAW022001 | 20 holes |  |
| 2.0 Straight Reconstruction Plate | PAW022002 | 20 holes |  |
| 2.4 Straight Reconstruction Plate | PAW022003 | 25 holes |  |
| 2.7 Straight Reconstruction Plate | PAW022004 | 20 holes |  |
| 3.5 Straight Reconstruction Plate | PAW022005 | 12 holes |  |
product description
1. The Applications of Veterinary Straight Reconstruction Plate
Complex Fracture Repair: Suitable for reconstruction of comminuted, multi-segmental, or irregular fractures of long bones (e.g., femur, tibia, and humerus).
Bone Deformity Correction: Assists in segmental fixation after osteotomy (e.g., nonunion, congenital deformity).
Specialty Fixation: Stable reconstruction of non-long bone areas such as pelvic fractures and mandibular fractures.
Temporary Fixation: Provides temporary structural support during bone grafting or infection control.
2. The Function of Veterinary Straight Reconstruction Plate
1）Moldable Design:
Can be bent/twisted intraoperatively to precisely conform to bone anatomy (especially suitable for irregular bone surfaces).
Allows surgeons to tailor the length to their needs (some models can be cut).
2）Multiple Hole Layout:
Symmetrical or alternating hole placement supports high-density screw placement (e.g., 1.5mm-3.5mm screws).
Compatible with cortical screws and locking screws (select models), providing hybrid fixation options.
3）Stainless Steel Material Characteristics:
High mechanical strength and excellent bending and fatigue resistance, suitable for high-load areas (such as the femur of large dogs).
Corrosion resistance (316L medical stainless steel), but long-term implants may require secondary removal (compared to titanium alloys).
3. The Advantages of Veterinary Straight Reconstruction Plate
1）Adaptability:
The only multifunctional plate that can be used for long bones, pelvis, and maxillofacial bones.
This plate solves the problem of traditional straight plates being unable to conform to complex bone morphologies.
2）Cost-Effectiveness:
Stainless steel is lower in cost than titanium alloys, making it suitable for budget-constrained settings.
Reproducible shaping, reducing the number of intraoperative changes.
3）Flexibility:
No specialized tools are required for shaping (flexion is achieved with pliers), shortening surgical time.
Screw holes support multiple fixation modes (compression/neutralization/locking).
4）Clinically Validated:
Decades of extensive use in veterinary orthopedics, the technology is mature and widely accepted by clinicians.
4. Example Application:
-Pelvic fracture in large dogs: Bilateral reconstruction plates fix the pubic symphysis and ilium.
-Mandibular fractures in cats: 2.0mm straight plates are bent and then used to fix the mandibular body.
-Long bone fractures in exotic pets (e.g., ferrets): 1.5mm plates are cut and then used to fix the radius.
5. Precautions
1）Limitations of stainless steel:
They are more susceptible to stress shielding than titanium alloys, and long-term implants may require removal.
MRI is not recommended (titanium alloys do not have this limitation).
2）Recommended Selection:
Titanium alloys are preferred for high-activity animals (e.g., working dogs); stainless steel is an option for budget-constrained or short-term fixation.
Additional product specifications (e.g., number of holes, thickness range) or surgical examples can be added for further refinement.
