Non-Locking Plate
01
Veterinary Orthopedic Trauma Stainless Steel Material Non-Locking Plates And Screws
product description

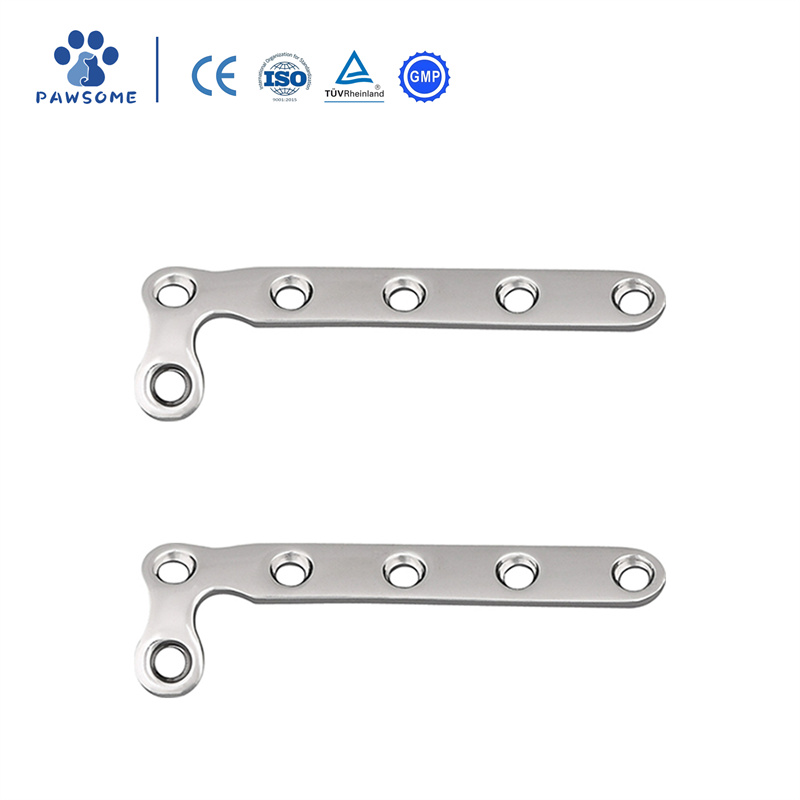

1. Precision Positioning Applications of 2.0mm L Type Round Hole Plate
Small Animal Distal Joint Fractures: Designed for elbow/knee fractures (e.g., lateral condyle fractures, medial epicondyle avulsions) in dogs and cats weighing 2-10 kg.
Micro-Bone Fixation: Suitable for L-shaped anatomical fixation of small bones such as the distal metacarpals/metatarsals and the olecranon.
Exotic Pet Orthopedics Applications: Suitable for special angle fixation of distal long bones in exotic pets such as rabbits and minks.
2. Unique Functional Design of 2.0mm L Type Round Hole Plate
L-Shaped Structure Advantages
90° Right-Angle Design: Perfectly conforms to the anatomy of the joint transition, avoiding metal fatigue caused by manual bending during surgery
Bidirectional Fixation: Horizontal arm fixes the diaphysis and vertical arm fixes the epiphysis, achieving three-dimensional stability
2.0mm Round Hole System of 2.0mm L Type Round Hole Plate
-Compatible with 2.0mm cortical screws: Supports 30° tapered angle adjustment, meeting the multi-directional fixation requirements of small bone fragments
-Anti-Rotation Design: The two distal holes utilize an elliptical groove structure, allowing for micro-dynamic compression of the fracture ends
-Medical Stainless Steel Features
Ultra-Thin 1.2mm Thickness: Balances strength and volume, eliminating soft tissue coverage challenges in small animals
-Emergency Shaping: Special heat treatment allows for fine-tuning of the plate within 5° while maintaining strength
3. Core Clinical Advantages of 2.0mm L Type Round Hole Plate
✅ Anatomically Shaped and Bend-Free - Pre-formed L-shaped structure reduces surgical time by 20% and reduces technical errors
✅ Miniaturized Solution - The thinnest proprietary L-shaped plate on the market (compared to 2.4/2.7mm systems)
✅ Dual Compatibility Design - Can be used with a 2.0mm locking system (with interchangeable locking screws in the vertical arm)
✅ Cost-effective option - Only 40% of the price of a titanium alloy L-shaped plate, suitable for high-frequency use
4. Typical Surgical Cases of 2.0mm L Type Round Hole Plate
Cat lateral humeral condyle fracture:
3 holes in the horizontal arm fix the diaphyseal shaft, 2 holes in the vertical arm fix the articular bone fragment Combined with a lag screw to achieve compression of the fracture end
Chihuahua distal radius fracture:
The short L-shaped arm acts as an anti-slip barrier to prevent displacement of the small bone fragment
Pet rabbit tibial plateau fracture:
Utilize the special holes in the L-shaped corner for K-wire-assisted fixation
5. Recommended Accessories of 2.0mm L Type Round Hole Plate
▸ Required: 2.0mm micro-drill system + self-tapping cortical screws
▸ Recommended: L-shaped plate positioning clamp (for improved implant accuracy)
▸ Contraindications: Do not use pneumatic drills to prevent thermal necrosis
