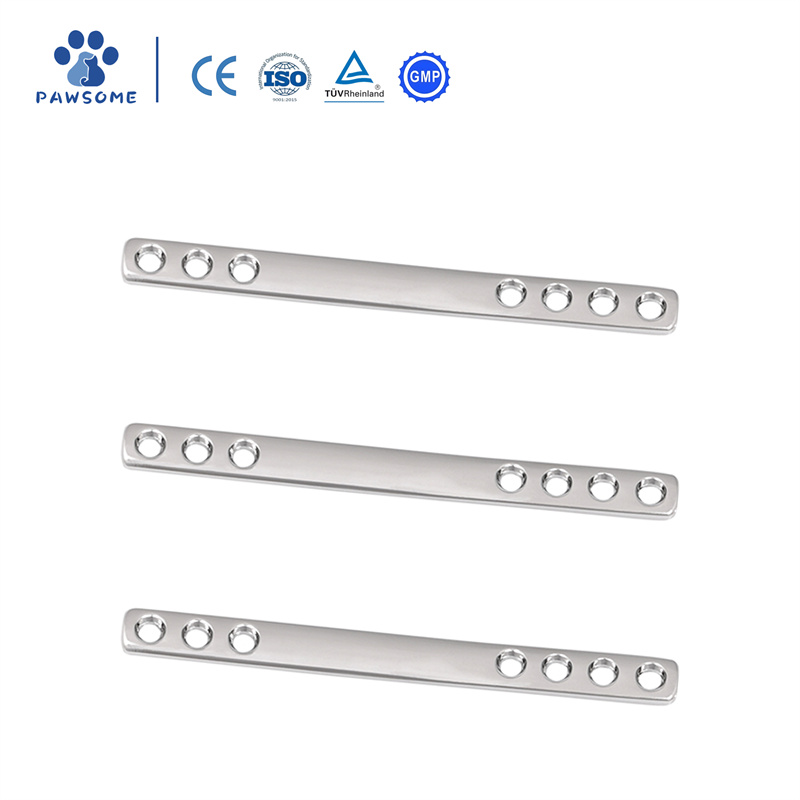

Veterinary Orthopedic Trauma 2.7 Round Hole Neutral Plate
product description
1. Core Application of Veterinary Round Hole Neutral Plate
-Long Bone Shaft Fracture Fixation: Designed for simple transverse or short oblique fractures of long bones such as the femur, tibia, and humerus in pets such as dogs and cats.
-Neutral Protection: Used in conjunction with lag screw technology, it protects the fracture ends from bending, rotation, and shear forces (biomechanically neutral fixation).
-Low-Cost Routine Surgery: Ideal for budget-conscious primary care clinics performing standard fracture repair procedures.
2. Key Features of Veterinary Round Hole Neutral Plate
Structural Design
Classic Round Hole Structure:
Allows standard cortical screws, such as 3.5mm/2.7mm, to be inserted at various angles (20° tapered adjustment range)
Supports eccentric compression technology (dynamic compression hole design requires separate specification)
Low-profile, streamlined design: Plate thickness ranges from 1.8-2.5mm, minimizing soft tissue irritation
Graded Length: Available in various sizes, from 6 to 16 holes, to accommodate pets of varying sizes
Material Properties: Medical-grade 316L stainless steel:
Yield strength ≥500 MPa, suitable for dogs under 25 kg
Economical choice (price is only 1/3-1/2 of titanium alloy plates)
3. Highlights of Veterinary Round Hole Neutral Plate
✅ Cost-effectiveness - The preferred consumable for fracture surgery in primary care clinics
✅ Easy to use - Compatible with all existing veterinary screw instruments (no special locking tools required)
✅ Emergency Flexibility - Adjust the arc during surgery with a curved plate clamp (especially suitable for demonstrations in teaching hospitals)
✅ Long-term clinical validation - 50+ years of global veterinary clinical application history and a complete complication database
