ALPS Plate
01

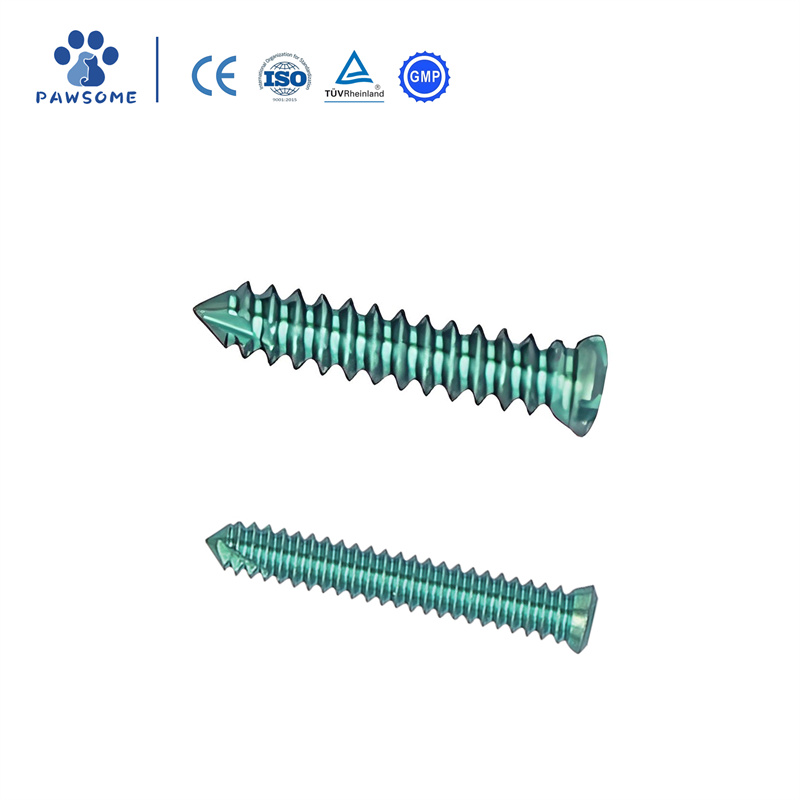

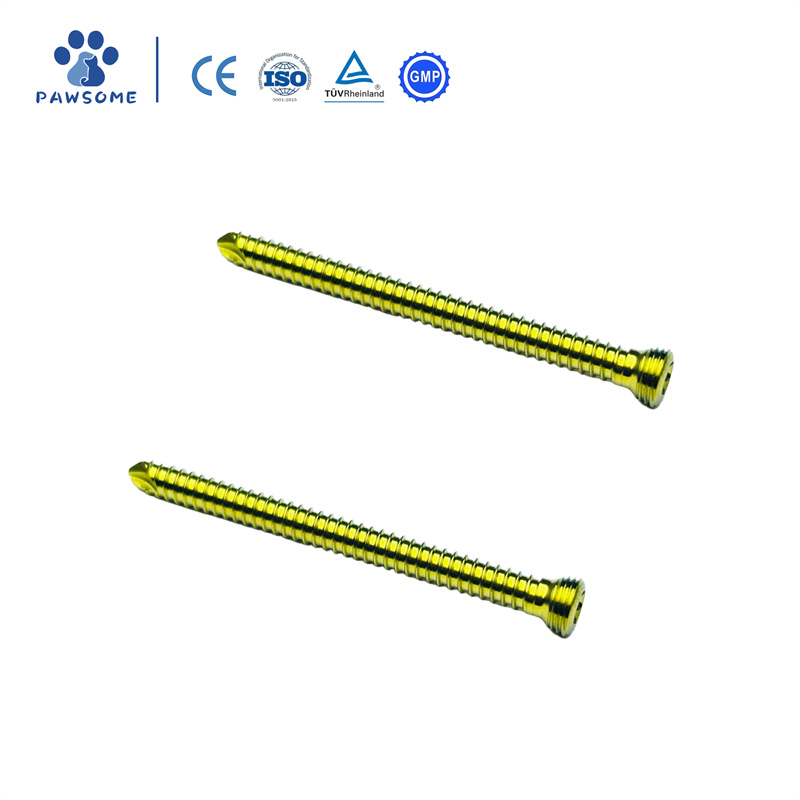

Orthopedic Implants Veterinary Locking Screws
specification
| Products | CODE | Specification | Picture |
| 1.6mm Locking Screw | PAW011001 | 1.6*4 |  |
| PAW011002 | 1.6*5 | ||
| PAW011003 | 1.6*6 | ||
| PAW011004 | 1.6*7 | ||
| PAW011005 | 1.6*8 | ||
| PAW011006 | 1.6*10 | ||
| 2.4mm Locking Screw | PAW011007 | 2.4*5 | |
| PAW011008 | 2.4*6 | ||
| PAW011009 | 2.4*8 | ||
| PAW011010 | 2.4*10 | ||
| PAW011011 | 2.4*12 | ||
| PAW011012 | 2.4*14 | ||
| PAW011013 | 2.4*16 | ||
| 3.2mm Locking Screw | PAW011014 | 3.2*6 | |
| PAW011015 | 3.2*8 | ||
| PAW011016 | 3.2*10 | ||
| PAW011017 | 3.2*12 | ||
| PAW011018 | 3.2*14 | ||
| PAW011019 | 3.2*16 | ||
| PAW011020 | 3.2*18 | ||
| PAW011021 | 3.2*20 | ||
| 4.0mm Locking Screw | PAW011022 | 4.0*10 | |
| PAW011023 | 4.0*12 | ||
| PAW011024 | 4.0*14 | ||
| PAW011025 | 4.0*16 | ||
| PAW011026 | 4.0*18 | ||
| PAW011027 | 4.0*20 | ||
| PAW011028 | 4.0*22 | ||
| PAW011029 | 4.0*24 | ||
| PAW011030 | 4.0*26 |
product description
1.The Applications of Veterinary Locking screws
Orthopedic Implant Fixation: Locking screws are primarily used in conjunction with locking plates to provide stable fixation during fracture repair or arthrodesis in pets (such as dogs and cats).
Complex Fracture Treatment: Suitable for comminuted fractures, nonunions, or osteoporosis, offering enhanced pullout resistance compared to traditional cortical screws.
Joint Surgeries: Ensures a rigid connection between the implant and the bone during procedures such as high tibial osteotomy (TPLO) and pantarsal arthrodesis.
2.The Function of Veterinary Locking screws
Locking Mechanism: The screw head forms an angle with the locking hole in the plate to stabilize the structure, reduce micromotion, and promote bone healing.
Bicortical/Monocortical Fixation: Some models support bicortical fixation (through both cortical layers of bone) for enhanced stability; unicoortical designs reduce soft tissue damage.
Universal Locking (Optional): Some screws allow 5°–15° of angle adjustment to accommodate various bone morphologies.
Material Compatibility: Medical stainless steel or titanium alloy is typically used, which is corrosion-resistant and highly biocompatible, allowing for long-term retention in the body.
3. The Advantages of Veterinary Locking screws
Higher Stability: The locking structure resists shear and rotational forces, reducing the risk of postoperative loosening and making it particularly suitable for active, large dogs.
Minimally Invasive Surgery: Minimizes disruption to the periosteal blood supply, reducing the risk of infection and accelerating healing.
Simplified Procedure: No precise plate shaping is required; the screws lock directly, shortening surgical time.
Long-Term Durability: Titanium alloy screws are MRI-compatible and require no secondary surgical removal.
Diverse Options: Available in various diameters (e.g., 2.0mm–4.0mm), lengths, and head designs (cross/hexagonal slot) to accommodate a variety of surgical needs.
4. The Example Applications of Veterinary Locking screws
ALPS Locking System: Used with 10mm/11.5mm plates for canine tibial or radial fractures.
Pre-bent locking nails: For example, the pre-bent interlocking nail (BENT) developed by Michigan State University has a 20% higher compressive strength than straight nails and is suitable for tibial gap fractures.
The advantages of PAWSOME：
1.With decades of experience in the field of pet orthopedics, we are able to provide high-quality products and effective solutions for pets around the world.
2.Hundreds of products allow you to achieve one-stop shopping, saving your time, providing your pet with better treatment time, and high-quality services, making you more efficient.
3.All products comply with CE and ISO certification, providing 100% guarantee for the safety and health of pets.
4.Professional technical and sales teams provide you with professional services 24 hours a day and respond to your needs in a timely manner.
5.Sufficient inventory ensures timely delivery of your orders, and flexible delivery channels provide you with the most suitable and safest transportation methods, so that the goods can reach you safely.
6.We provide 1 year after-sales service, so you can buy without worries.
