ALPS Plate
01
Orthopedic Implants Veterinary Cortical Screws
specification

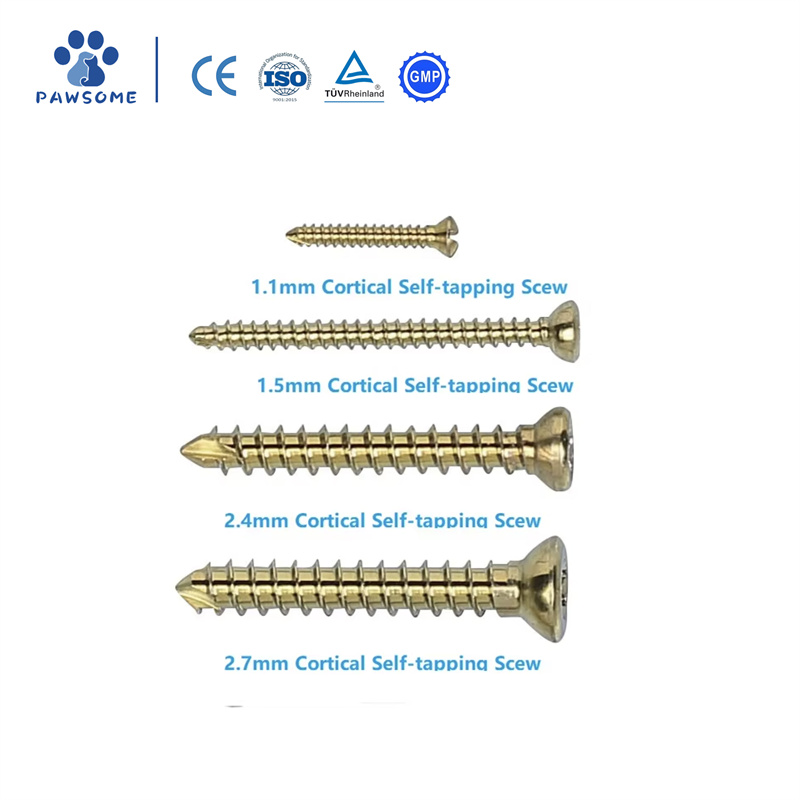

| Products | CODE | Specification | Picture |
| 1.1mm Cortical Self-Tapping Screw | PAW011101 | 1.1*04 |  |
| PAW011102 | 1.1*05 | ||
| PAW011103 | 1.1*06 | ||
| PAW011104 | 1.1*07 | ||
| PAW011105 | 1.1*08 | ||
| PAW011106 | 1.1*09 | ||
| PAW011107 | 1.1*10 | ||
| PAW011108 | 1.1*12 | ||
| 1.5mm Cortical Self-Tapping Screw | PAW011109 | 1.5*6 | |
| PAW011110 | 1.5*7 | ||
| PAW011111 | 1.5*8 | ||
| PAW011112 | 1.5*10 | ||
| PAW011113 | 1.5*12 | ||
| PAW011114 | 1.5*14 | ||
| PAW011115 | 1.5*16 | ||
| PAW011116 | 1.5*18 | ||
| PAW011117 | 1.5*20 | ||
| PAW011118 | 1.5*22 | ||
| PAW011119 | 1.5*24 | ||
| PAW011120 | 1.5*26 | ||
| 2.0mm Cortical Self-Tapping Screw | PAW011121 | 2.0*10 | |
| PAW011122 | 2.0*12 | ||
| PAW011123 | 2.0*14 | ||
| PAW011124 | 2.0*16 | ||
| PAW011125 | 2.0*18 | ||
| PAW011126 | 2.0*20 | ||
| PAW011127 | 2.0*22 | ||
| PAW011128 | 2.0*24 | ||
| PAW011129 | 2.0*26 | ||
| 2.4mm Cortical Self-Tapping Screw | PAW011130 | 2.4*10 | |
| PAW011131 | 2.4*12 | ||
| PAW011132 | 2.4*14 | ||
| PAW011133 | 2.4*16 | ||
| PAW011134 | 2.4*18 | ||
| PAW011135 | 2.4*20 | ||
| PAW011136 | 2.4*22 | ||
| PAW011137 | 2.4*24 | ||
| PAW011138 | 2.4*26 | ||
| PAW011139 | 2.4*28 | ||
| PAW011140 | 2.4*30 | ||
| PAW011141 | 2.4*32 | ||
| 2.7mm Cortical Self-Tapping Screw | PAW011142 | 2.7*12 | |
| PAW011143 | 2.7*14 | ||
| PAW011144 | 2.7*16 | ||
| PAW011145 | 2.7*18 | ||
| PAW011146 | 2.7*20 | ||
| PAW011147 | 2.7*22 | ||
| PAW011148 | 2.7*24 | ||
| PAW011149 | 2.7*26 | ||
| PAW011150 | 2.7*28 | ||
| PAW011151 | 2.7*30 | ||
| PAW011152 | 2.7*32 | ||
| PAW011153 | 2.7*34 |
product description
1. The Applications of Veterinary cortical screws
Fracture Fixation: Primarily used with non-locking plates or alone to fix long bone fractures (e.g., femur, tibia, radius, etc.) in pets (e.g., dogs and cats).
Bone Compression: Uses the lag screw technique to apply compression between fracture ends, promoting bone healing.
Auxiliary Fixation: Used in conjunction with wires or cerclages to enhance the stability of complex fractures.
Joint Surgery: For temporary fixation during procedures such as total hip replacement (THR) or osteotomy.
2. The Function of Veterinary cortical screws
1）Full-Threaded/Partial-Threaded Design:
Full-Threaded Screws: For general fixation, providing uniform grip.
Partial-Threaded Screws (Lag Screws): Use the unthreaded distal portion to apply compression between fracture fragments.
2）Self-Tapping/Non-Self-Tapping:
Self-Tapping Screws: Require no pre-tapping, simplifying surgical procedures.
Non-Self-Tapping Screws: Require pre-drilling and tapping, suitable for high-density bone (e.g., cortical bone).
Material Compatibility: Made of medical-grade stainless steel or titanium alloy, they offer excellent biocompatibility and long-term retention.
3. The Advantages of Veterinary cortical screws
-Wide Applicability: Suitable for most types of fractures in pets, especially long bones with abundant cortical bone.
-Compression Capacity: The semi-threaded design provides axial compression, promoting close contact between the fracture ends and accelerating healing.
-Cost-Effectiveness: Compared to locking screws, they offer lower costs, mature technology, and a lower barrier to veterinary use.
-Various Specifications: Available in various diameters (e.g., 1.5mm–4.5mm), lengths, and thread types to accommodate pets of varying sizes (from small to large dogs).
4. Application Examples of Veterinary cortical screws
-Long Bone Fractures: For example, mid-shaft femoral fractures are fixed using a cortical screw combined with a neutral bone plate.
-Hip Surgery: Assisted fixation of greater trochanter osteotomy fragments.
-Maxillofacial Orthopedics: Small cortical screws are used for mandibular fracture repair.
The advantages of PAWSOME：
1. With decades of experience in the field of pet orthopedics, we are able to provide high-quality products and effective solutions for pets around the world.
2. Hundreds of products allow you to achieve one-stop shopping, saving your time, providing your pet with better treatment time, and high-quality services, making you more efficient.
3. All products comply with CE and ISO certification, providing 100% guarantee for the safety and health of pets.
4. Professional technical and sales teams provide you with professional services 24 hours a day and respond to your needs in a timely manner.
5. Sufficient inventory ensures timely delivery of your orders, and flexible delivery channels provide you with the most suitable and safest transportation methods, so that the goods can reach you safely.
6. We provide 1 year after-sales service, so you can buy without worries.
